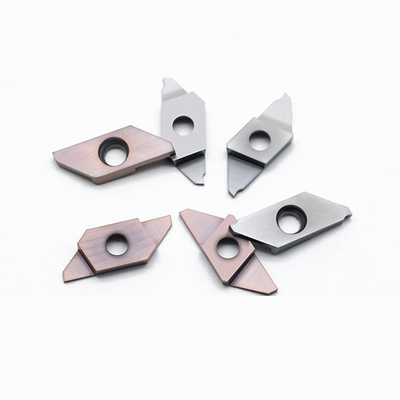

Cut Off Inserts For CNC Machines For General-purpose Grooving Machining Of Stainless Steel Etc

CTP Application Field

The CTP is a widely recognized type of CNC carbide insert designed for grooving and parting-off operations. It is primarily utilized on lathes and CNC machines and is available in various shapes and cutting angles. This insert is particularly suitable for general-purpose grooving machining of stainless steel and similar materials.

When selecting a cut-off insert, several parameters must be considered, including insert geometry, grade, shape (nose angle), size, nose radius, and entering (lead) angle, to ensure effective chip control and optimal machining performance.

Production Standard

This series of inserts is primarily based on the standards of NTK’s CTP series. Size specifications can be customized to meet individual customer requirements.

The CTP series is a well-known line of carbide cutting inserts from NTK. Our Drow standard production sizes and stock specifications are aligned with this established series.

For specific information, please refer to the section below.

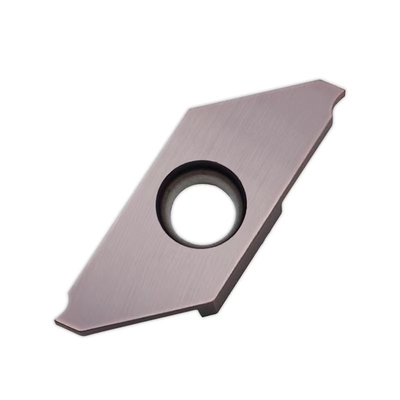

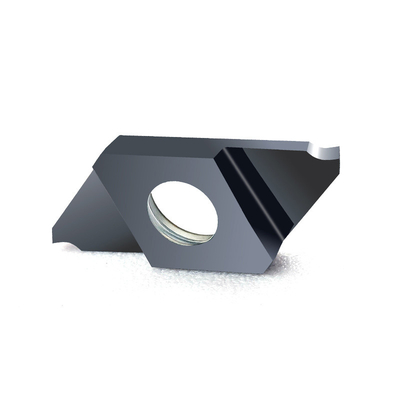

Product Details: CTP

• Material Quality: Constructed from 100% original carbide powder, providing outstanding wear resistance and toughness.

• Dimensions:

  • Width (W): 0.5–2.0 mm
  • Angle (θ): 0° or 16°
  • Nose Radius (rε): 0.05 mm

• Coating Technology: Advanced coatings are tailored to your application, enhancing corrosion and wear resistance.

• Fine Grinding Process: The insert surface achieves high smoothness and excellent cutting edge quality, effectively minimizing cutting resistance and friction loss.

• Perfect Fit: Precisely designed edge strips help reduce the likelihood of micro-vibration during machining.

• Applicable Materials:

  • Uncoated Inserts: Suitable for aluminum, non-ferrous metals, and non-metallic materials.
  • Coated Inserts: Effective for carbon steel, alloy steel, mold steel, hardened steel, and ductile iron.

• Customization: If our standard stock does not meet your specific needs, please attach CAD or 3D drawings for inquiries.

• Production Quality: All inserts are manufactured using high-end EU processing equipment. For more details, please refer to the “Entire Production Quick View” section.

Product Features:

1.Chamfering and tip-arc processing of the insert cutting edge, which can well protect the insert edge from fracture and lead to smooth workpiece surface.

2.Switzerland 5 axis machine processing R Angle, and passivation treatment, high precision without burr
3. High performance composite coating support which can offer you super hard and smooth surface.
4. Professional and efficiency chip-breaker design, provides perfect cutting performance.
5. Precise dimension, high accuracy. Perfectly fit to tool holders so that not easy to produce micro-vibration during processing.

6.The base material imported from Europe has better oxidation resistance and wear resistance.
7. Customized insert design.Different dimensions,coating, chip-breaker, and material grade are available.
Carbide inserts produced by We Drow realize efficiency machining and long tool life, which are popular and well-feedback all over the world.

Product Specification:

Entire Production Quick View:

1.Use 100% original carbide powder to sinter to get the integral insert blank.

2.Flat grinding machining.

3.Surrounding grinding machining.

4.Create insert cutting edge.

5.Chamfering and tip-arc processing of the insert cutting edge.

6.Composite Coating.

Quality Inspection:

Why choose us:

1.Advanced Technology: Complex surfaces and functional structures can be quickly formed and kept accurate.
2.Short Machining Period: Short production cycle to ensure delivery on time according to the delivery date.
3.Crowned Product: High quality guaranteed.High precision, up to 0.005-0.001mm.
4.Confidentiality System: Triple confidentiality measures to protect customer’s private design. Proofing more assured.
5.Fully Equipment: Excellent processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
6.Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help supply customers cheaper price of the same level products .

FAQ

Q1: Are insert samples available ?

A: We provide free sample,the exneeds to be paid by the buyer

Q2: Can we get a discount if our ordered quantity is big enough ?

A: Yes.We can offer you our best price and will give you a discount if your ordered quantity is big enough.

Q3: How can we trust your product quality?

A: 100% products quality inspection for first batch, and casual inspection for the coming batch.Raw material will be tested before bulk production and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping

Q4: What's your delivery way?

A: According to the requirements of customers,we will provide the best transportation service

Q5: How do you keep long-term and good relationship with our business?
A:1. Consistent quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend. We sincerely do business and make friends with them, no matter where they come from.

Q6:Are you a factory or trading company?
A1: We are a professional manufacturer of precision hardware tools industry for tens of years. Welcome to visit our company.We guarantee our products are factory price, very cheap and competitive.
