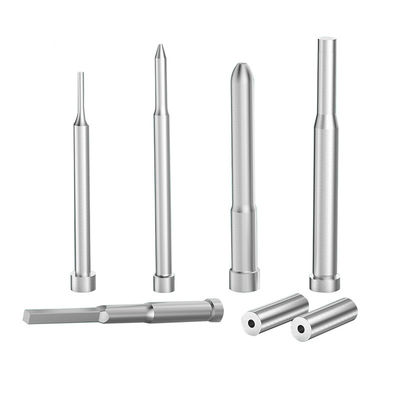

Precision Profile Grinding PG Punch Pins and Punch Die Components with Polish or Fine Grinding Surface for Cylindrical Grinding Technology

Precision Profile Grinding PG Punch Pins, Punch Die Components For Stamping Work

Optical profile grinding (PG) is a popular precision machining mode, mainly used to process key parts in precision equipment such as punch dies components and punch mold, and is suitable for forming and grinding of high-hardness materials.

• Surface Roughness: RZ~~0.2um / F1.0mm/min
• Accuracy: ±0.001mm
• Customization: Absolutely customization. There is no standard stock for this series of products, and only non-standard orders are accepted. Please attach CAD drawings/3D drawings to your inquiry.
• Suitable Material: Tungsten carbide, ceramic and HSS etc, properties as below:

• Machining Type: It needs to be processed with a plotter. The plotter depicts the graphics to be processed on the film, and the film is pasted on the projection screen and then corrected. The processor will perform the molding process according to the molding on the film.
• Involve Production Technology: Cylindrical grinding, internal circular grinding, optical profile grinding, flat grinding, thread machining, middle speed wire cutting, low speed wire cutting, mirror discharge machining and so on.

• Advanced Technology: Complex shapes and various structures can be quickly formed and kept precise.
• Efficient Processing: Short production cycle and rapid delivery, to ensure shipment schedule according to the delivery date.
• Product Quality: Consistent quality guaranteed. High accuracy, up to ±0.003mm.
• Confidentiality System: Triple confidentiality measures to protect. If you need, we can sign a NDA (Non Disclosure Agreement), proofing more assured.
• High-end and Fully Equipped: Outstanding processing capacity, multiple production lines, advanced equipment, professional supporting facilities.
• Cost-effective: Reasonable design and material selection lead us to a competitive price, so that could help offer you more favorable price of the same level products.

Kinyet focuses on tungsten relevant material research and development all the time. Through constantly introducing new technology and increase investing on high-end production equipment, Kinyet is able to offer molds solution with high-quality-price-ratio, include high precision, higher tooling life and cost effective etc. Now Kinyet is merged with Drow. With this powerful combination, believe we will create more excellent products for consumer in the future!

• Wear Resistance
• Precision
• Corrosion Resistance
• Impact Strength
• Toughness
• Modulus of elasticity, Rigidity
• Transverse Rupture Strength. Etc.
